SPECIFICATIONS
| FRAME |

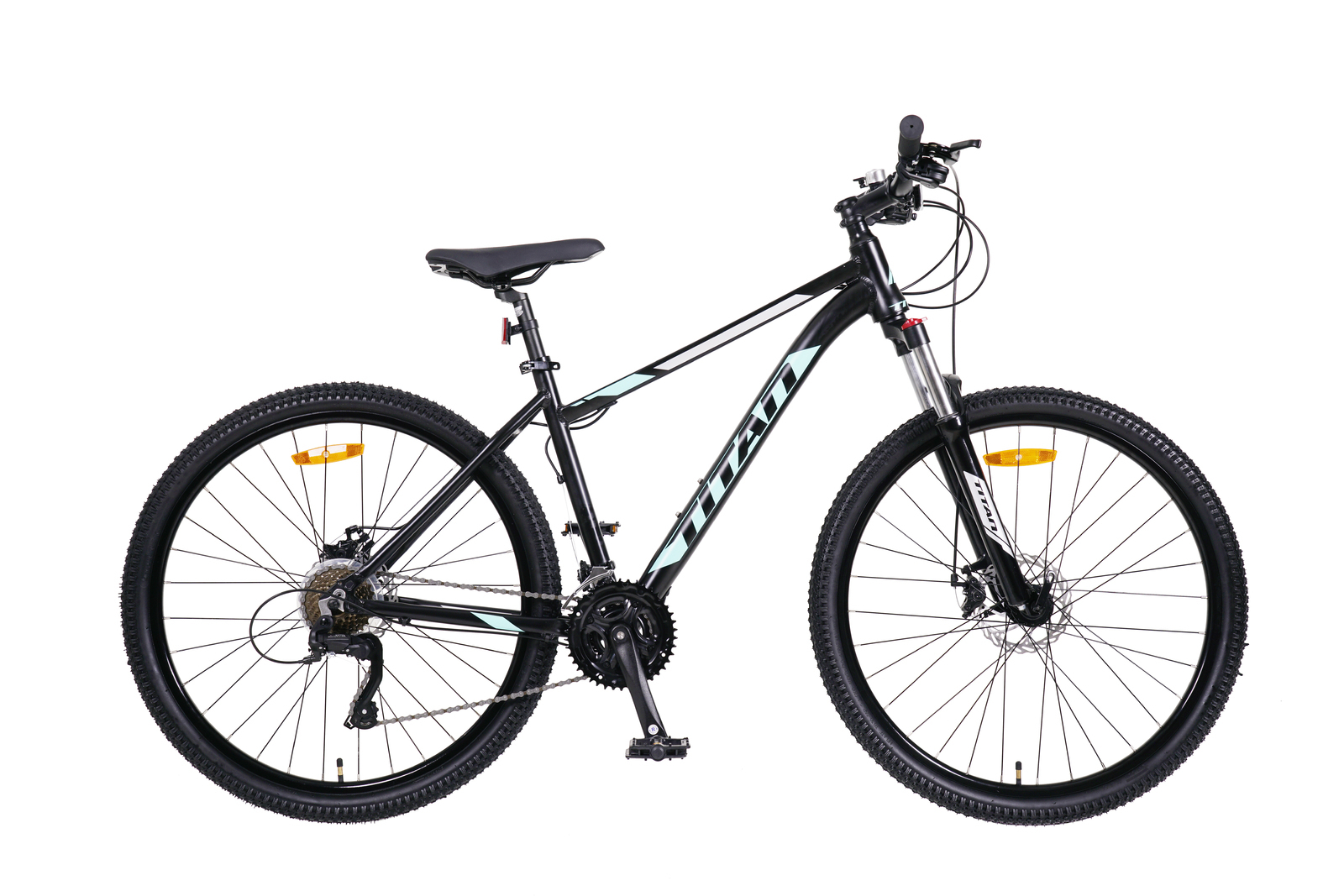

27.5" lightweight 6061 alloy disc specific framewith integrated head tube, internal cable routing, snake stays and replaceable derailleur hanger |

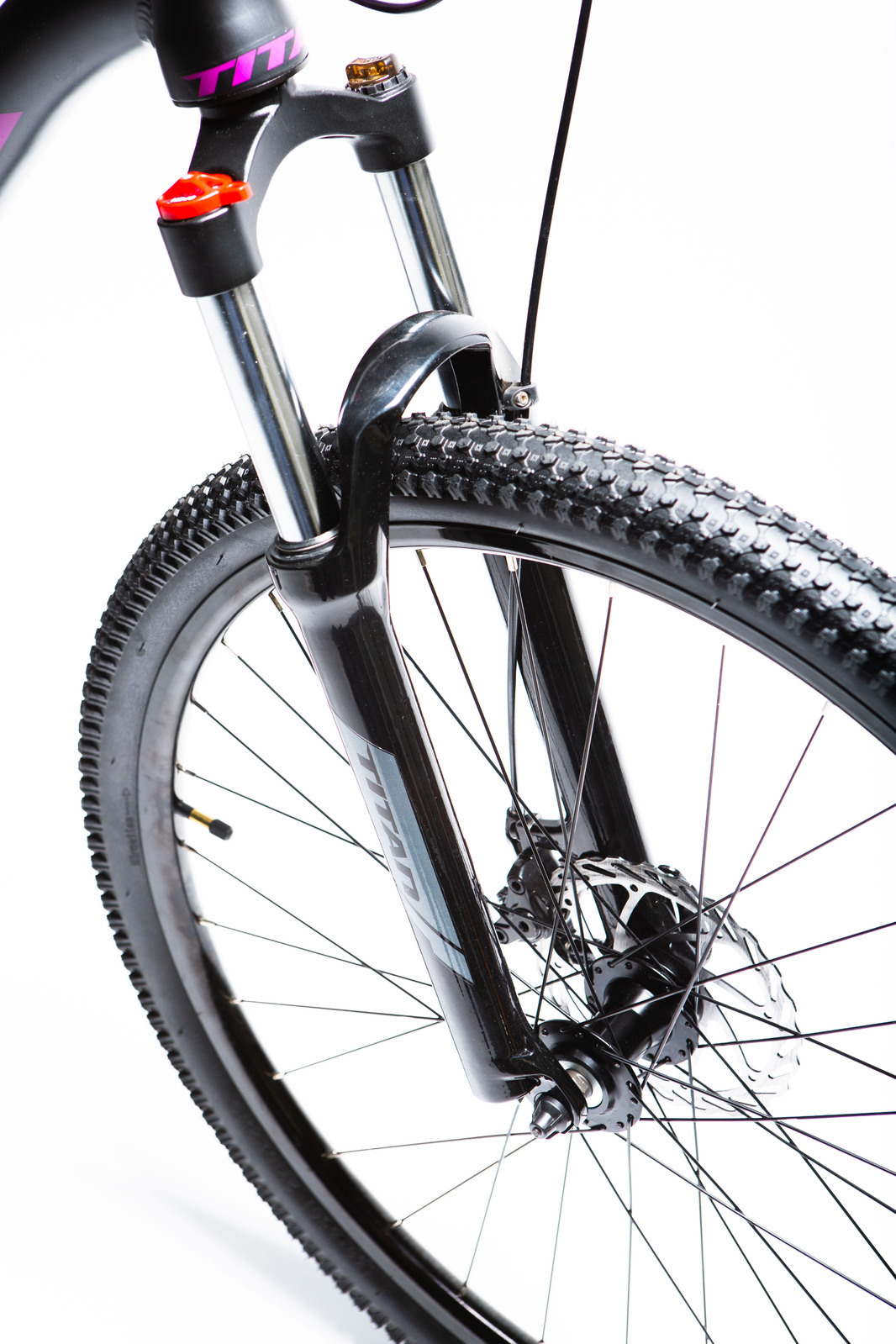

| FORK | 27.5, 80mm travel, preload. |
| HEADSET |
Semi integrated A-head 1-1/8" |

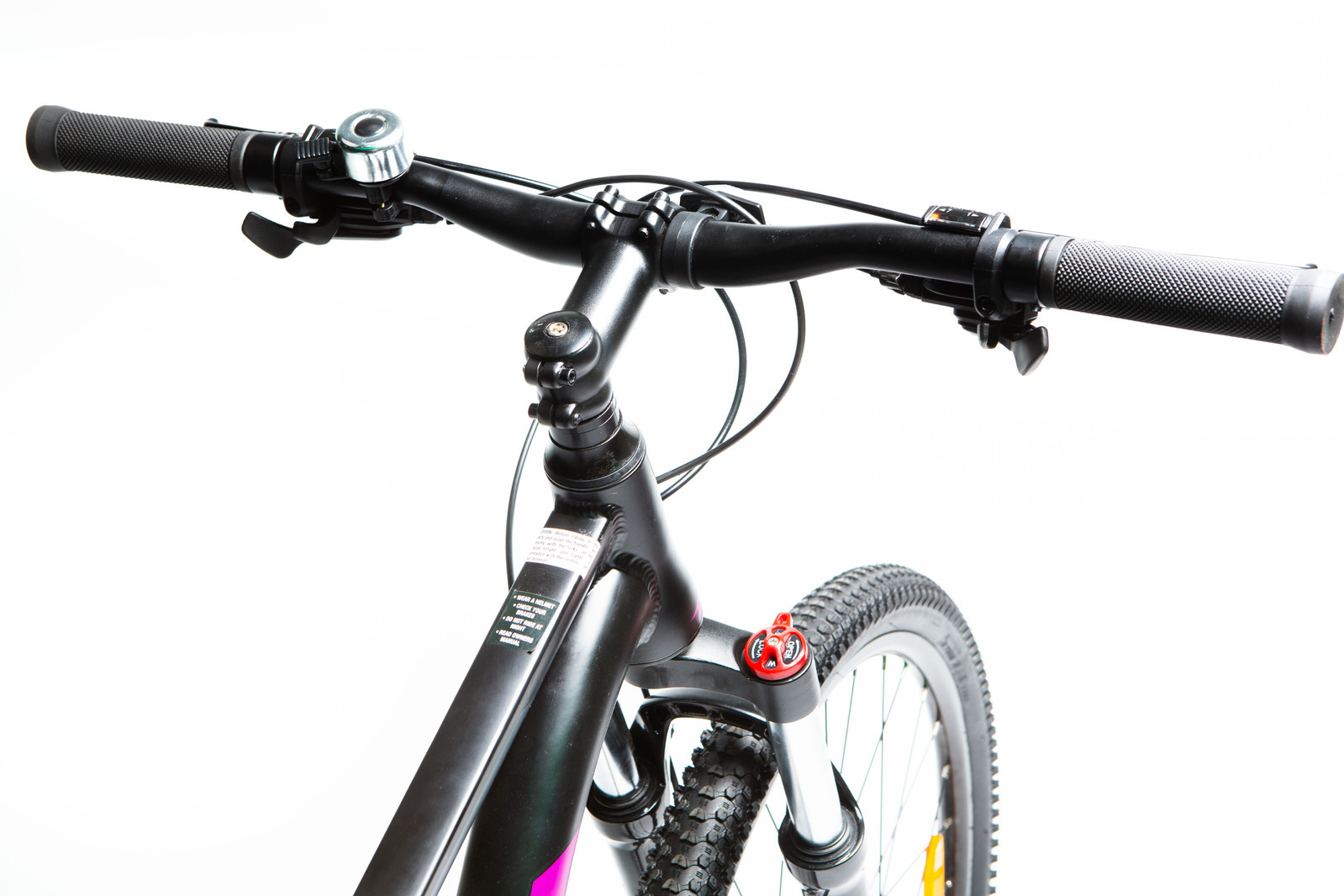

| HANDLEBAR | Low riser, W: 640mm, R: 20mm, bore: 31.8mm, sweep: 6° |
| GRIP | Kraton grip |
| HEADSTEM | Alloy A-head 25.4mm Ext: XS/S=60mm, M/L=80mm, XL=105mm |
| CRANKSET | Alloy MTB crank 42 x 32 x 22T L=170mm |
| BOTTOM BRACKET | Cartridge bottom bracket |
| PEDALS | Low profile high impact resin |
| FRONT DERAILLEUR | MicroShift FD-M20 ∮31.8mm Top pull |

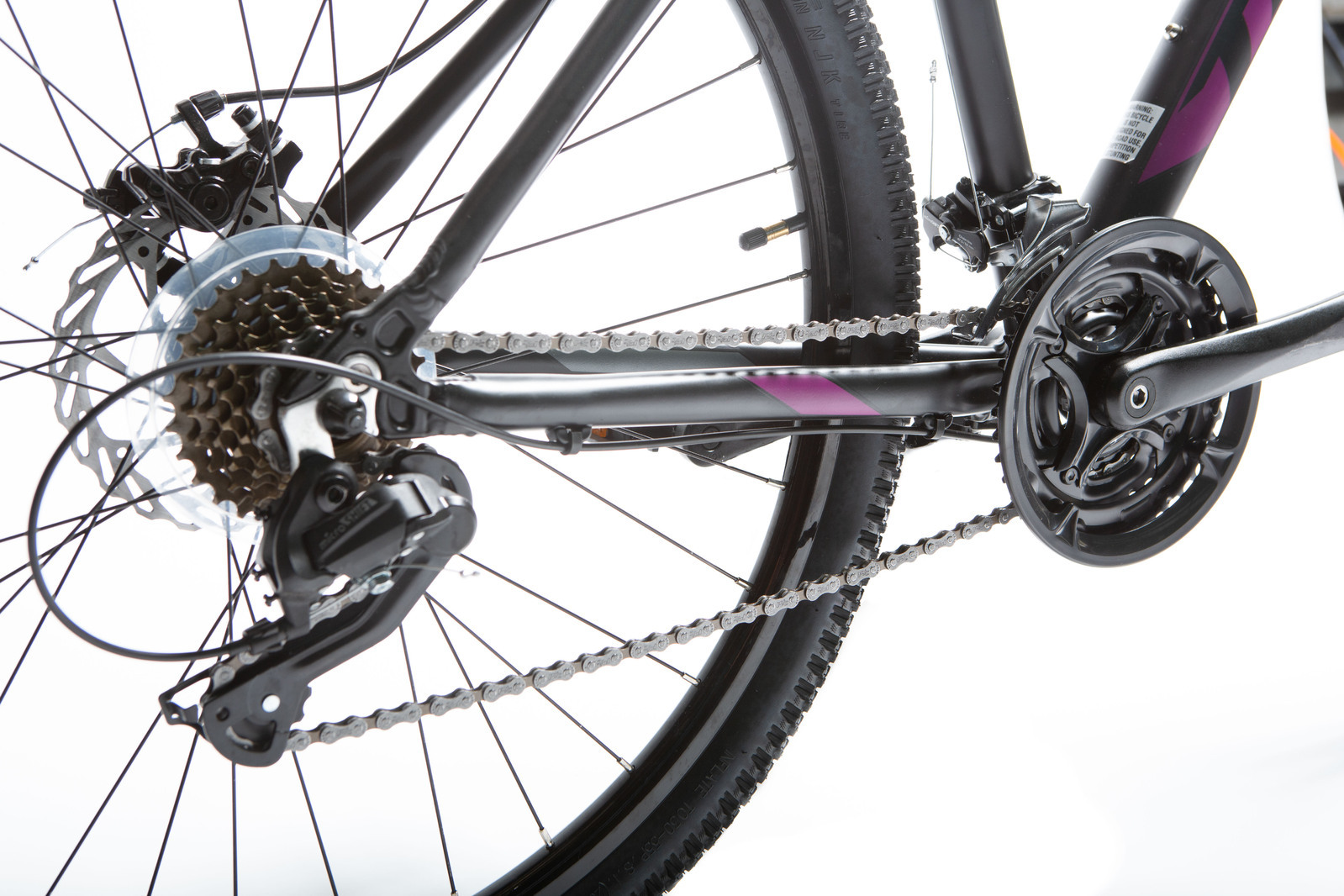

| REAR DERAILLEUR | MicroShift TS38-7 7Speed Index, Inner pull |

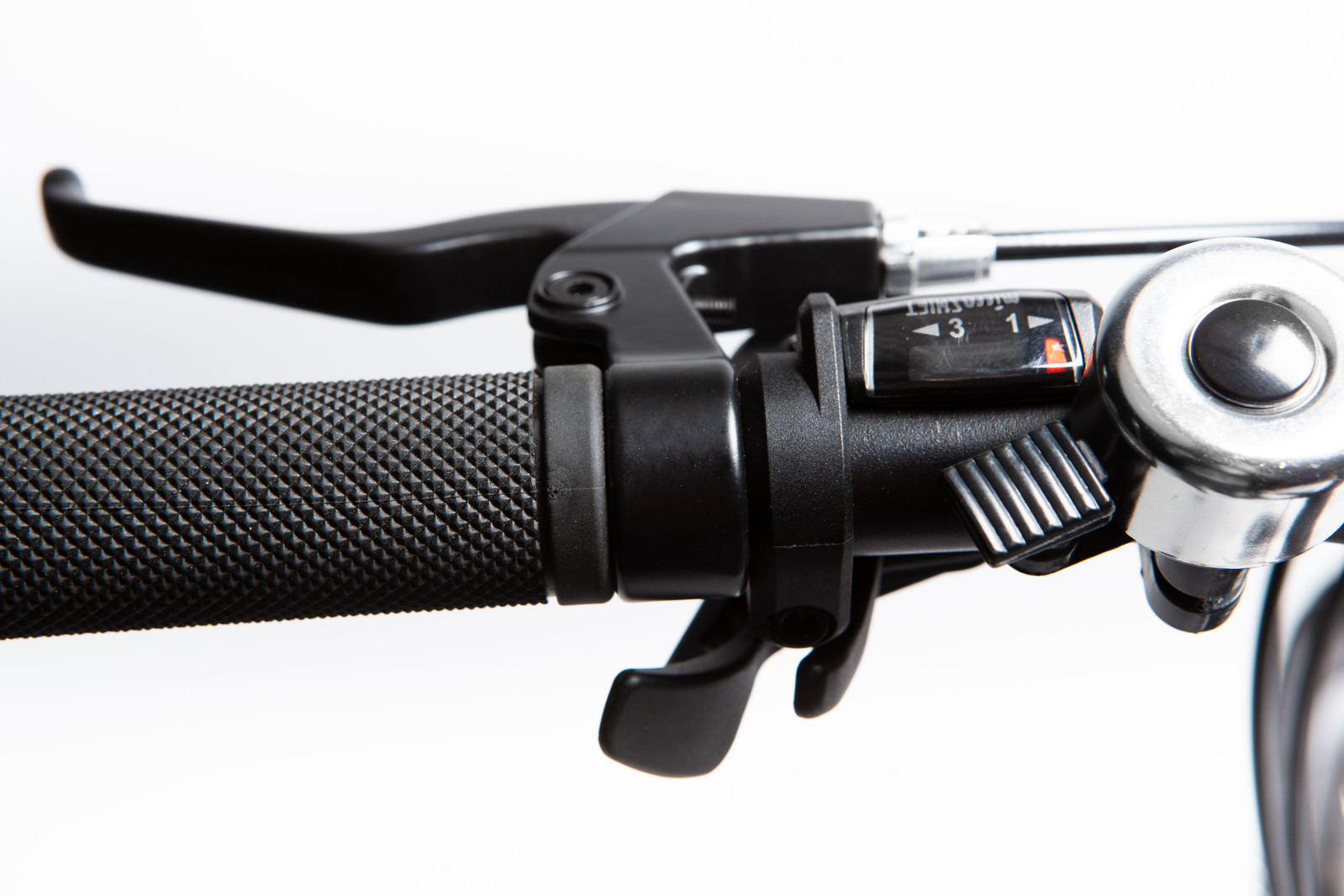

| SHIFTERS | MicroShift 21 speed Index R:TS38-7 7Speed, L:TS38-3 Speed, 3 finger pull |

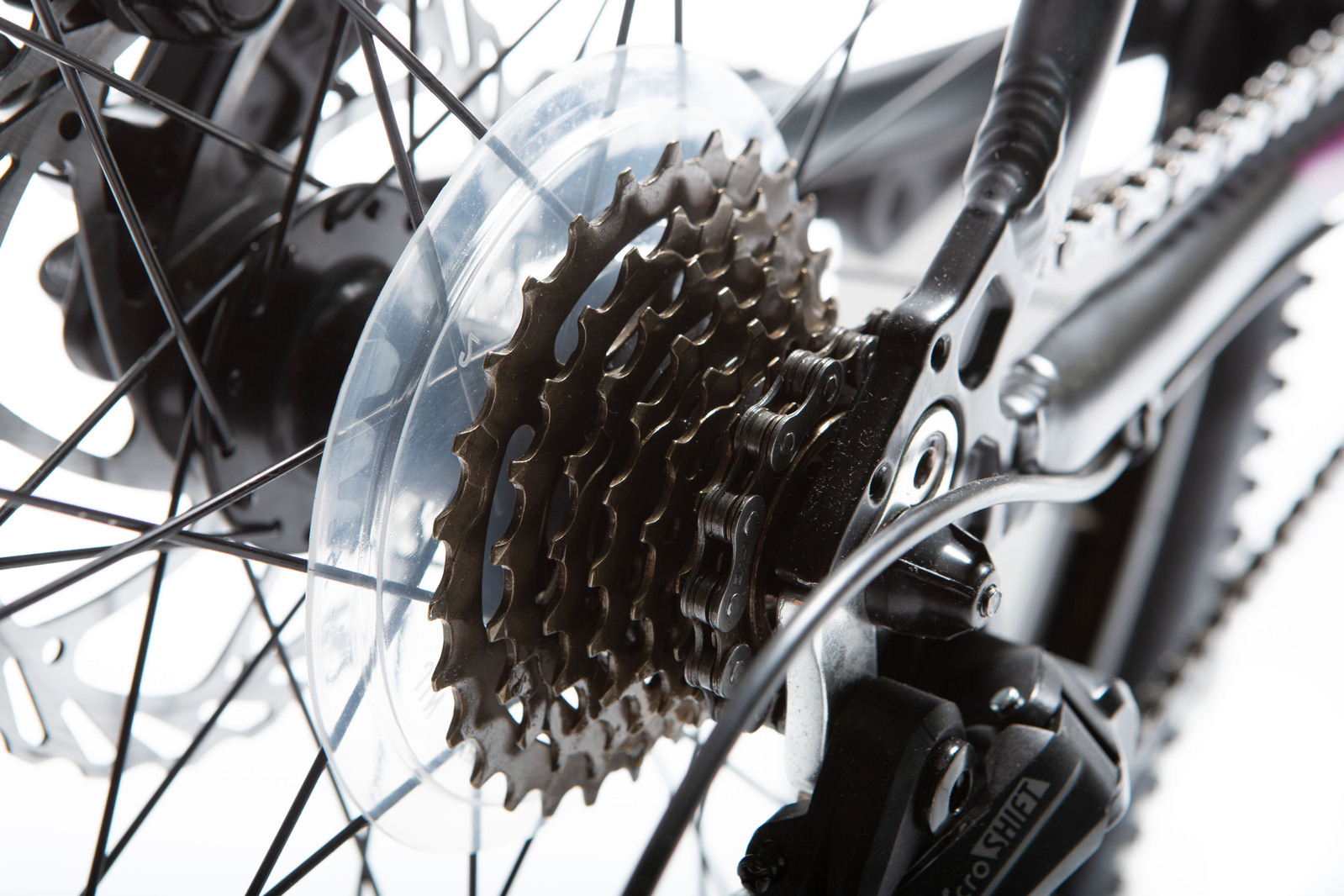

| FREEWHEEL | General Model SF-FW05 7 speed 12-28T |
| CHAIN | KMC Z-7 x 120 Links |

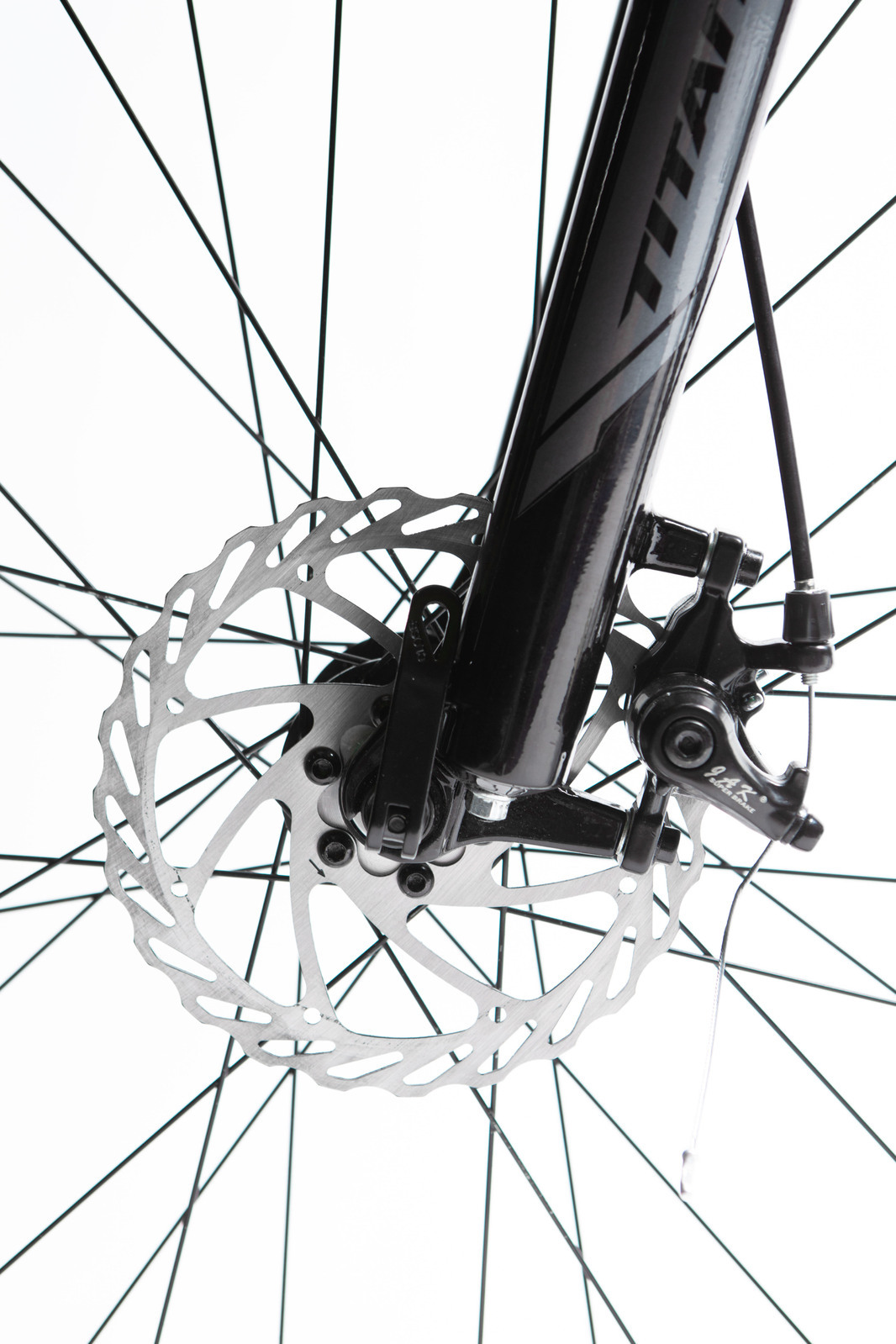

| BRAKES | JAK-8 mechanical disc brakes with 160mm rotors |
| WHEELS | 27.5" alloy 32 hole A/V double wall disc specific rims, alloy disc hubs and stainless spokes |
| TYRES | General 27.5 x 2.1" wire bead |
| SADDLE | General MTB sport saddle |
| SEATPOST / CLAMP |
Alloy micro adjust 27.2mm, L:350mm with QR clamp |
GEOMETRY
| FRAME SIZE | XS | S | M |
|---|---|---|---|
| 14" | 15.5" | 17.5" | |
| A – STACK | 584 | 602 | 616 |
| B – REACH | 373 | 381 | 397 |
| C – STAND OVER HEIGHT | 382 | 412 | 437 |
| D – EFFECTIVE TOP TUBE LENGTH | 540 | 565 | 585 |
| E – SEAT TUBE (CENTRE TO TOP) | 355 | 400 | 440 |
| F – SEAT ANGLE | 74° | 73° | 73° |
| G – HEAD TUBE LENGTH | 100 | 115 | 130 |
| H – HEAD ANGLE | 69° | 70° | 70° |
| I – WHEEL BASE | 1058 | 1061 | 1082 |
| J – CHAIN STAY LENGTH | 435 | 435 | 435 |
| K – BB DROP | 45 | 45 | 45 |
| L – FORK RAKE | 42 | 42 | 42 |
| M – AXLE TO CROWN | 495 | 495 | 495 |
| REAR DROPOUT SPACING | 135 | 135 | 135 |
| APPROX. RIDER HEIGHT | 147 - 160CM 4'10" - 5'3" |
163 - 170CM 5'4" - 5'7" |
170 - 178CM 5'7" - 5'10" |
TO ENSURE A PROPER FIT, WE RECOMMEND CAREFULLY CHECKING THE SIZING AVAILABILITY THAT BEST SUITS YOU.APPROX. RIDER HEIGHT IS A RECOMMENDATION, AND SHOULD BE USED AS A GUIDE ONLY.
